HIKMICRO

PANTHER PQ35L 2.0

$5,299.00

640 × 512 thermal resolution with 12 μm detector
High sensitivity thermal module NETD < 20 mK (25°C,F# = 1.0)
35 mm lens with detection range up to 1800 m
1024 × 768 resolution 0.39-inch OLED display
Laser rangefinder detection range up to 600 m
Supports audio and recoil-activated recording
High shock resistance up to 1000 g/0.4 ms
Up to 5 hours of continuous operation

Available Stock: 1 left

In stock

SKU PQ35LV2

[catcbll pid="" background="" font_size="" font_color="" font_awesome="" border_btn_card_color="" border_btn_card_size="" icon_position="" image=""]

HIKMICRO

PANTHER PQ35L 2.0

$5,299.00

Available Stock: 1 left

In stock

SKU PQ35LV2

Description
Features
Specifications
REVIEWS

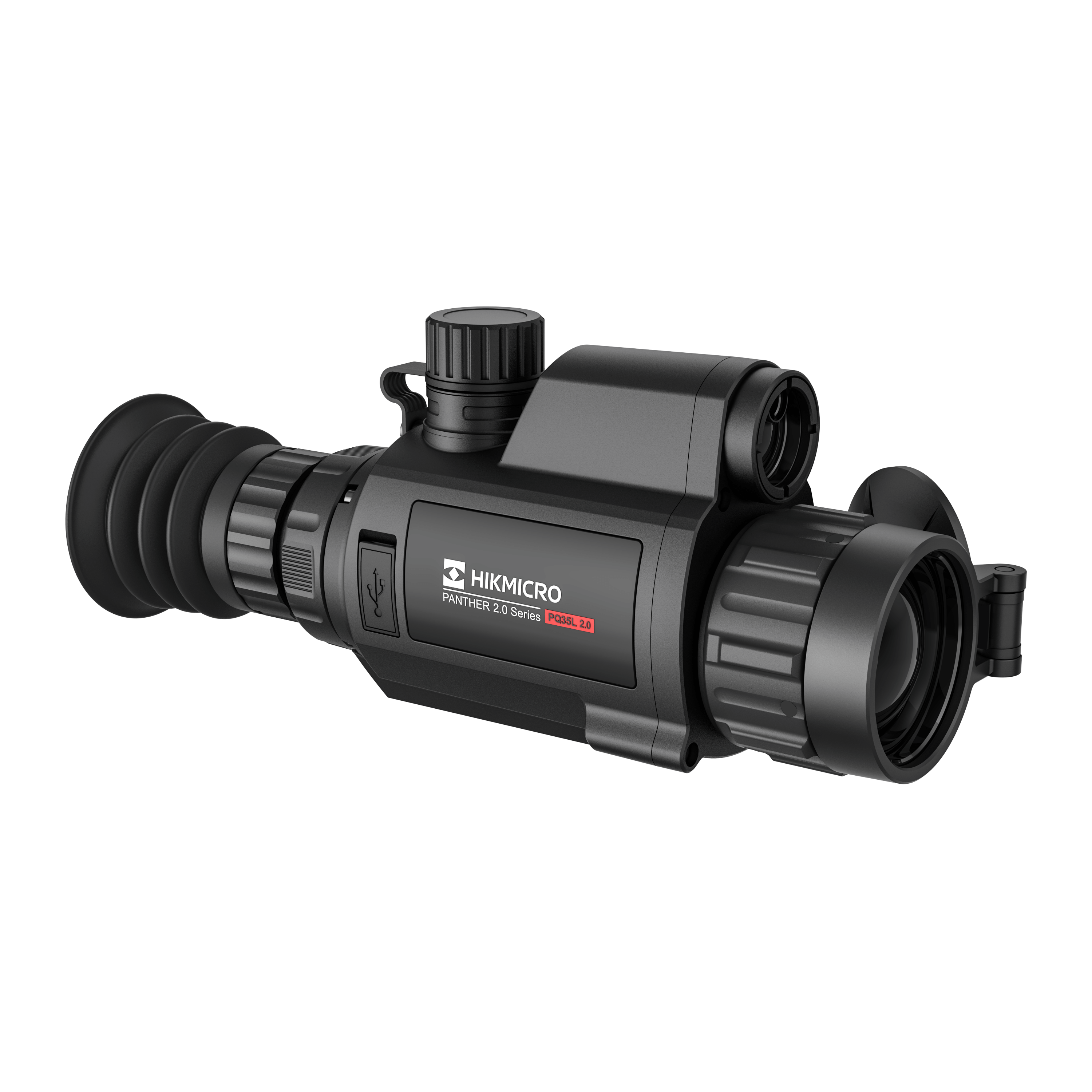

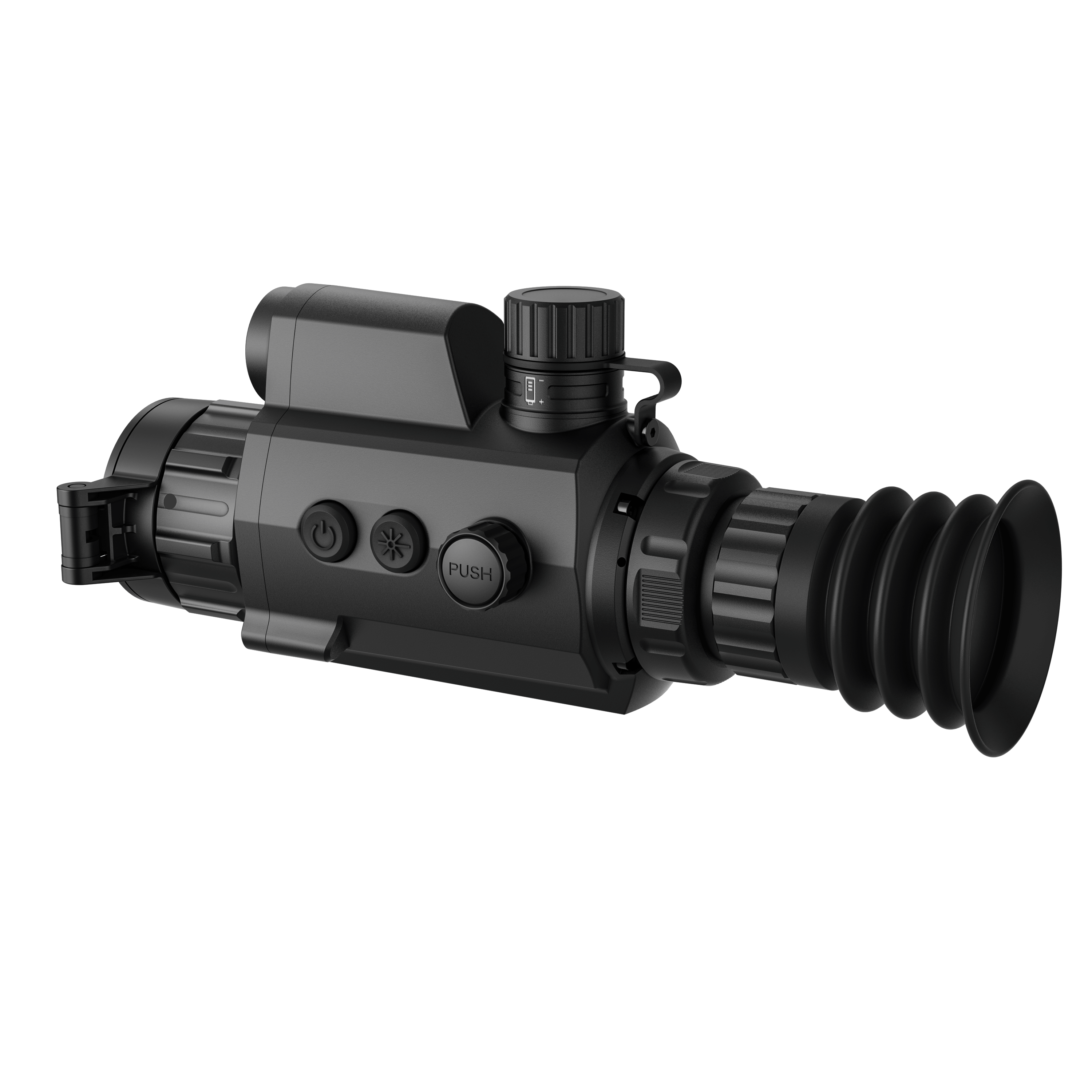

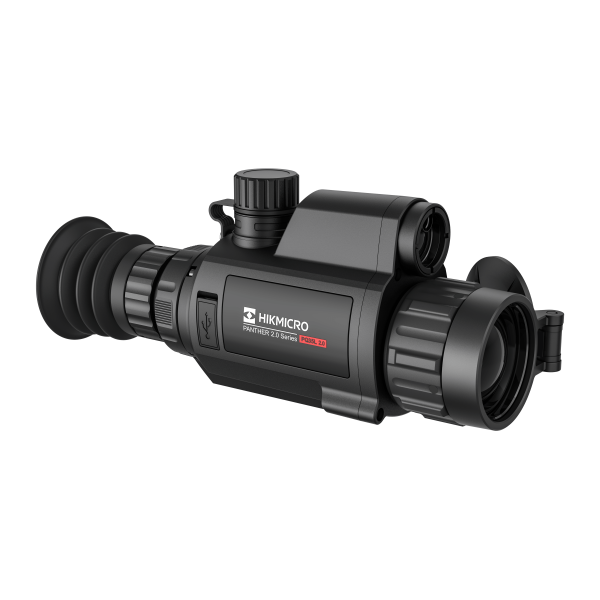

HIKMICRO PANTHER PQ35L 2.0 Thermal Image Scope has a 640 × 512 thermal detector and 1024 × 768 OLED monitor. High thermal sensitivity ensures perfect detail recognition even in the hardest weather conditions when the object and background are with minimal temperature difference. The scope is mainly applied to scenarios such as hiking, hunting, searching and rescuing.

640 × 512 thermal resolution with 12 μm detector
High sensitivity thermal module NETD < 20 mK (25°C,F# = 1.0)
35 mm lens with detection range up to 1800 m
1024 × 768 resolution 0.39-inch OLED display
Laser rangefinder detection range up to 600 m
Supports audio and recoil-activated recording
High shock resistance up to 1000 g/0.4 ms
Up to 5 hours of continuous operation

Thermal Module
Image Sensor	Uncooled Focal Plane Arrays
Max. Resolution	640 × 512
Frame Rate	50 Hz
Pixel Interval	12 μm
NETD	Less than 20 mK (25°C, F# = 1.0)
Lens (Focal Length)	35 mm
Detection Range	1800 m
Min. Focusing Distance	2 m
Aperture	F1.0
Magnification	1.82 ×
Field of View(H x V), Degrees/M @100 m	12.52° × 10.03°/21.94 m × 17.55 m
Image Display
Display	1024 × 768, 0.39 inch, OLED
Palettes	Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode	Auto, Manual, External Correction
Exit Pupil	6 mm
Eye Relief	45 mm
Diopter (Range)	-5 D to 3 D
Brightness Adjustment	Yes
Tone Adjustment	Cold, Warm
System
Record Video	On-board Video Recording
Capture Snapshot	Yes
Digital Zoom	Continuous digital zooming, 1x to 8x
Standby Mode	Yes
Storage	Built-in EMMC (16 GB)
PIP	Yes
DPC	Yes
Hotspot	Yes
Hot Track	Yes
Distance Measurement	Yes
Recoil-activation Recording	Yes
Audio Recording	Yes
Max. Recoil	1000 g/0.4 ms
Power Supply
Battery Type	Replaceable and Rechargeable Li-ion Battery
Battery Operating Time	≥ 5 h (25°C, with hotspot off)
Type-C Power Supply	5 V DC, 2 A – Supports External Power Supply
General
Protection Level	IP67
Dimension	214.64 mm × 66.97 mm × 87.10 mm
Weight	518 g without Battery
Working Temperature	-30°C to +55°C (-22°F to 131°F)
Laser Rangefinder
Safety Class for Laser	Class 1
Wavelength	905 nm
Max. Measuring Range	600 m
Measurement Accuracy	±1 m
Min. Measuring Range	10 m

Add a review

Currently, we are not accepting new reviews

0.0

Based on 0 reviews

5 star		0%
4 star		0%
3 star		0%
2 star		0%
1 star		0%

0 of 0 reviews

Most RecentMost Helpful

Sorry, no reviews match your current selections

Description

Features

640 × 512 thermal resolution with 12 μm detector
High sensitivity thermal module NETD < 20 mK (25°C,F# = 1.0)
35 mm lens with detection range up to 1800 m
1024 × 768 resolution 0.39-inch OLED display
Laser rangefinder detection range up to 600 m
Supports audio and recoil-activated recording
High shock resistance up to 1000 g/0.4 ms
Up to 5 hours of continuous operation

Specifications

Thermal Module
Image Sensor	Uncooled Focal Plane Arrays
Max. Resolution	640 × 512
Frame Rate	50 Hz
Pixel Interval	12 μm
NETD	Less than 20 mK (25°C, F# = 1.0)
Lens (Focal Length)	35 mm
Detection Range	1800 m
Min. Focusing Distance	2 m
Aperture	F1.0
Magnification	1.82 ×
Field of View(H x V), Degrees/M @100 m	12.52° × 10.03°/21.94 m × 17.55 m
Image Display
Display	1024 × 768, 0.39 inch, OLED
Palettes	Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode	Auto, Manual, External Correction
Exit Pupil	6 mm
Eye Relief	45 mm
Diopter (Range)	-5 D to 3 D
Brightness Adjustment	Yes
Tone Adjustment	Cold, Warm
System
Record Video	On-board Video Recording
Capture Snapshot	Yes
Digital Zoom	Continuous digital zooming, 1x to 8x
Standby Mode	Yes
Storage	Built-in EMMC (16 GB)
PIP	Yes
DPC	Yes
Hotspot	Yes
Hot Track	Yes
Distance Measurement	Yes
Recoil-activation Recording	Yes
Audio Recording	Yes
Max. Recoil	1000 g/0.4 ms
Power Supply
Battery Type	Replaceable and Rechargeable Li-ion Battery
Battery Operating Time	≥ 5 h (25°C, with hotspot off)
Type-C Power Supply	5 V DC, 2 A – Supports External Power Supply
General
Protection Level	IP67
Dimension	214.64 mm × 66.97 mm × 87.10 mm
Weight	518 g without Battery
Working Temperature	-30°C to +55°C (-22°F to 131°F)
Laser Rangefinder
Safety Class for Laser	Class 1
Wavelength	905 nm
Max. Measuring Range	600 m
Measurement Accuracy	±1 m
Min. Measuring Range	10 m
