HIKMICRO

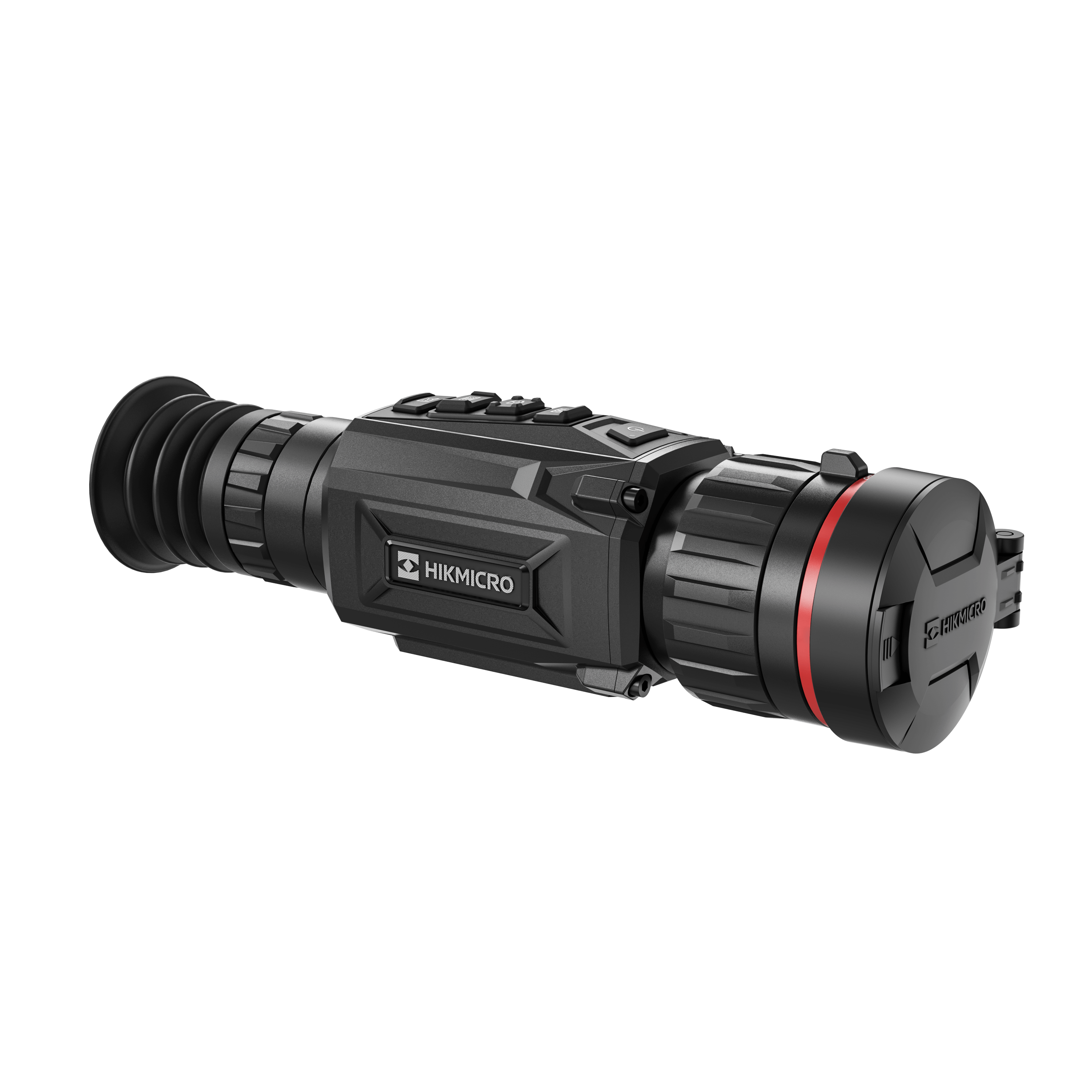

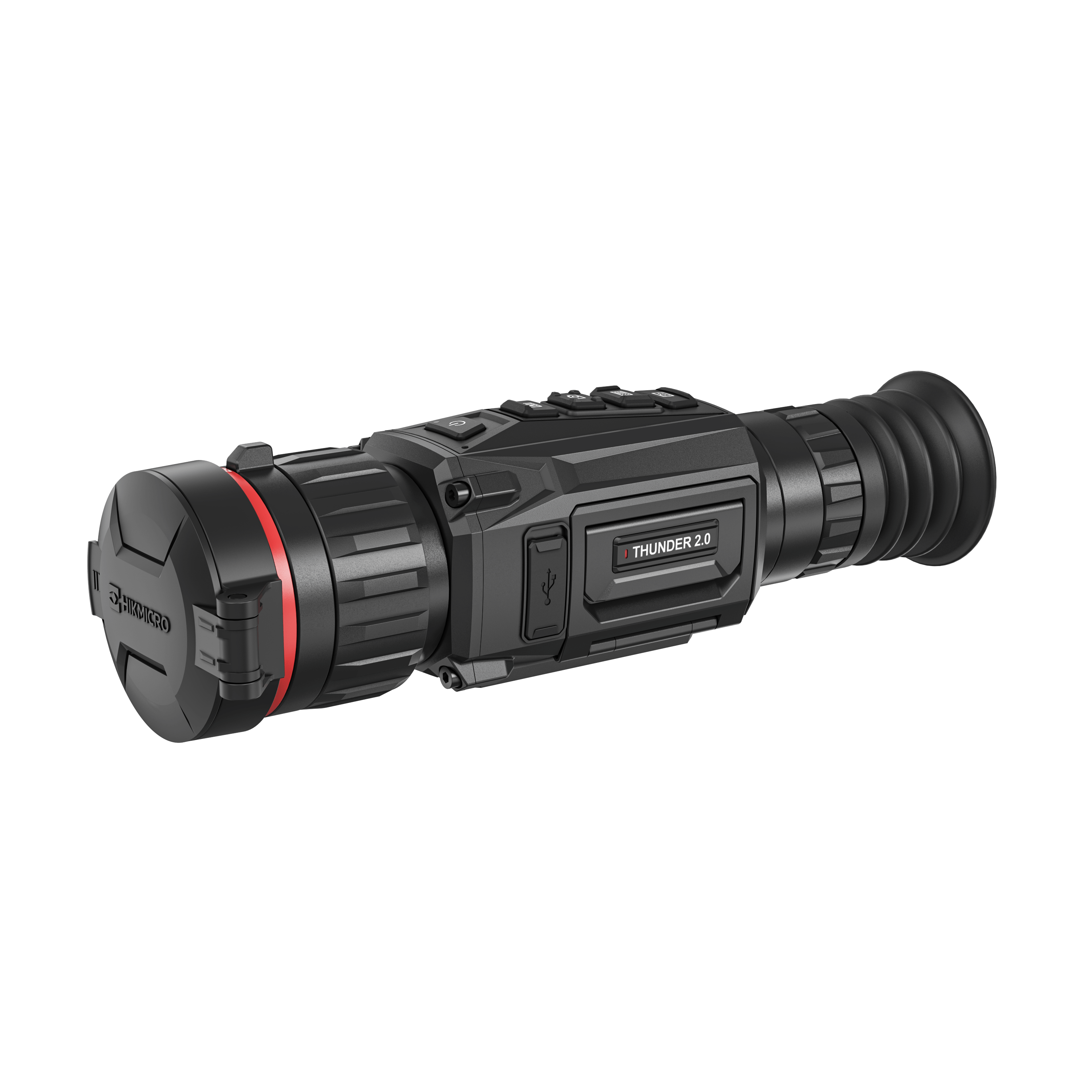

HIKMICRO THUNDER ZOOM TH50Z 2.0

$4,999.00

384 × 288 resolution with 12 μm detector
High sensitivity thermal module NETD < 20 mK (25°C, F# = 1.0)
Dual FOV of 25 mm (F0.8) & 50 mm (F1.0) objective lenses
1024 × 768 resolution 0.39-inch OLED display
Up to 6.5 hours of continuous operation
Replaceable and rechargeable Li-ion battery packs
High shock resistance up to 1000 g/0.4 ms
Detection range up to 2600 m

Available Stock: 1 left

In stock

SKU TH50ZV2

[catcbll pid="" background="" font_size="" font_color="" font_awesome="" border_btn_card_color="" border_btn_card_size="" icon_position="" image=""]

HIKMICRO

HIKMICRO THUNDER ZOOM TH50Z 2.0

$4,999.00

Available Stock: 1 left

In stock

SKU TH50ZV2

Description
Features
Specifications
REVIEWS

With a 2.2x to 34.6x large magnification realized by the 384 detector @20 mK, HIKMICRO THUNDER ZOOM TH50Z 2.0 is the perfect match for both wooded and open field areas. Besides, a F0.8 large aperture can strengthen your viewing ability of objects; an extended operation time can guarantee a non-stop game.

384 × 288 resolution with 12 μm detector
High sensitivity thermal module NETD < 20 mK (25°C, F# = 1.0)
Dual FOV of 25 mm (F0.8) & 50 mm (F1.0) objective lenses
1024 × 768 resolution 0.39-inch OLED display
Up to 6.5 hours of continuous operation
Replaceable and rechargeable Li-ion battery packs
High shock resistance up to 1000 g/0.4 ms
Detection range up to 2600 m

Thermal Module
Image Sensor	Uncooled Focal Plane Arrays
Max. Resolution	384 × 288
Frame Rate	50 Hz
Pixel Interval	12 μm
Response Waveband	8 μm – 14 μm
NETD	Less than 20 mK (25°C, F# = 1.0)
Lens (Focal Length)	25 mm, F0.8 AND 50 mm, F1.0
Focus Mode	Optical Zoom, Focus Ring
Detection Range	1200 m/2600 m
Min. Focusing Distance	25 mm: 4 m/50 mm: 10 m
Magnification	2.2x to 17.4x/4.3x to 34.6x (8x)
Field of View(H x V), Degrees/M @100 m	10.5° × 7.9°/18.4 m × 13.8 m; 5.3° × 4°/9.2 m × 6.9 m
Image Display
Display	1024 × 768, 0.39 inch, OLED
Palettes	Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode	Auto, Manual, External Correction
Exit Pupil	6 mm
Eye Relief	45 mm
Diopter (Range)	-5 D to +5 D
Brightness Adjustment	Yes
Tone Adjustment	Cold, Warm
System
Record Video	On-board Video Recording
Capture Snapshot	Yes
Standby Mode	Yes
Storage	Built-in EMMC (16 GB)
PIP	Yes
DPC	Yes
Hotspot	Yes
Hot Track	Yes
Distance Measurement	Yes
Audio Recording	Yes
Recoil-activation Recording	Yes
Max. Recoil	1000 g/0.4 ms
Zeroing Profiles	5
Power Supply
Battery Type	Replaceable and Rechargeable Li-ion Battery
Battery Operating Time	≥ 6.5 h (25°C, with hotspot off)
Type-C Power Supply	5 V DC, 2 A – Supports External Power Supply
General
Protection Level	IP67
Dimension	241.2 mm × 67.0 mm × 73.4 mm
Weight	750 g without battery
Working Temperature	-30°C to +55°C (-22°F to 131°F)
